EZER ELM-7800 Digital Lensmeter


Direct From The Manufacturer
This unit is certified new and will ship directly from the manufacturer. Original packaging, user manuals, and warranties are included.

1 Year Limited Warranty
This unit qualifies for our 12-Month Warranty Policy. Learn more about warranty policies by visiting our Warranties page.

Included with Purchase
Please contact us for additional accessories.

 Typically ships within three or less business days.

Out of stock

Category: Tag:

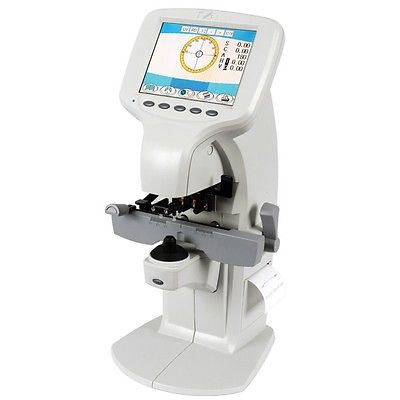

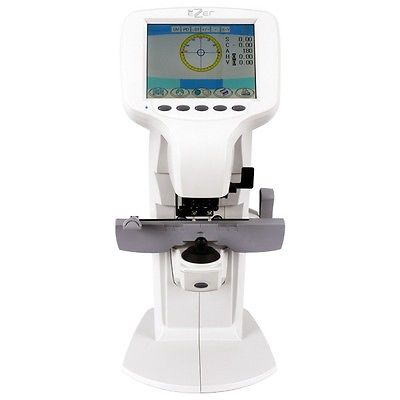

The Ezer ELM-7800 Auto Lensmeter offers a fast accurate way to measure all lenses, including:

Single Vision Lenses Progressives Lenses
Bifocals Lenses Prism  Lenses
Trifocals Lenses Contact Lenses
Lensmeter ELM-7800 Ezer LCD
5.7 TFT LCDPilot Lamp
Indicates power on/offNose sider
Used to measure the PD of framed lenses

Lens Holder Lever
Used to move the lens holder, to hold a lens and to remove a lens

Place lens for measurement

Read Button
Used to read the measurements collected

Marking Level
The Handle is to mark the lens

PD Box
Assists in various lens measurements, as well as PD measurements


Measurement range
Spherical Lens 0 to ±25.00D
(0.01D / 0.12D /  0.25D steps)
Contact Lens (spherical lens) 0 to ±25D (BC=6.00 to 9.00)
Cylinder Lens 0 to ±10D
(0.01D / 0.12D / 0.25D steps)
Cylinder Lens Axis 0°~180° (reading increment step: 1°)
Addition 0 to 10D
(0.01D /  0.12D / 0.25D steps)
Prism 0.00Δ to 10.00Δ
(0.01Δ / 0.12Δ / 0.25Δ steps)
Cylinder Lens Measurement Mode: ( – , ± , + )
Prism Measurement Mode         X-Y: Cartesian Coordinates H:I,O;V:U,D
P-B: Polar Coordinates
mm: mm expression
Display 5.7 TFT LCD
Lens Diameter 20mm-100mm
Power source AC (110V-240V)   ±10%: 50/60HZ 40 VA
Power Consumption 40W
Weight 4Kg
Dimensions ( W x H x D ) 200mm x 420mm x 290mm

Additional information

Weight 8.85 lbs
