Accutome B-Scan Plus

$9,795.00

Direct From The Manufacturer
This unit it certified new and will ship directly from the manufacturer. Original packaging, user manuals, and warranties are included.

1 Year Limited Warranty
This unit qualifies for our 12 Month Warranty Policy. Learn more about warranty policies by visiting our Warranties page.

Included with Purchase
 probe, holder, foot pedal, wireless mouse, software

2 in stock (can be backordered)

SKU: B-Scan+ Category:

Description

large_1376497771_b-scan

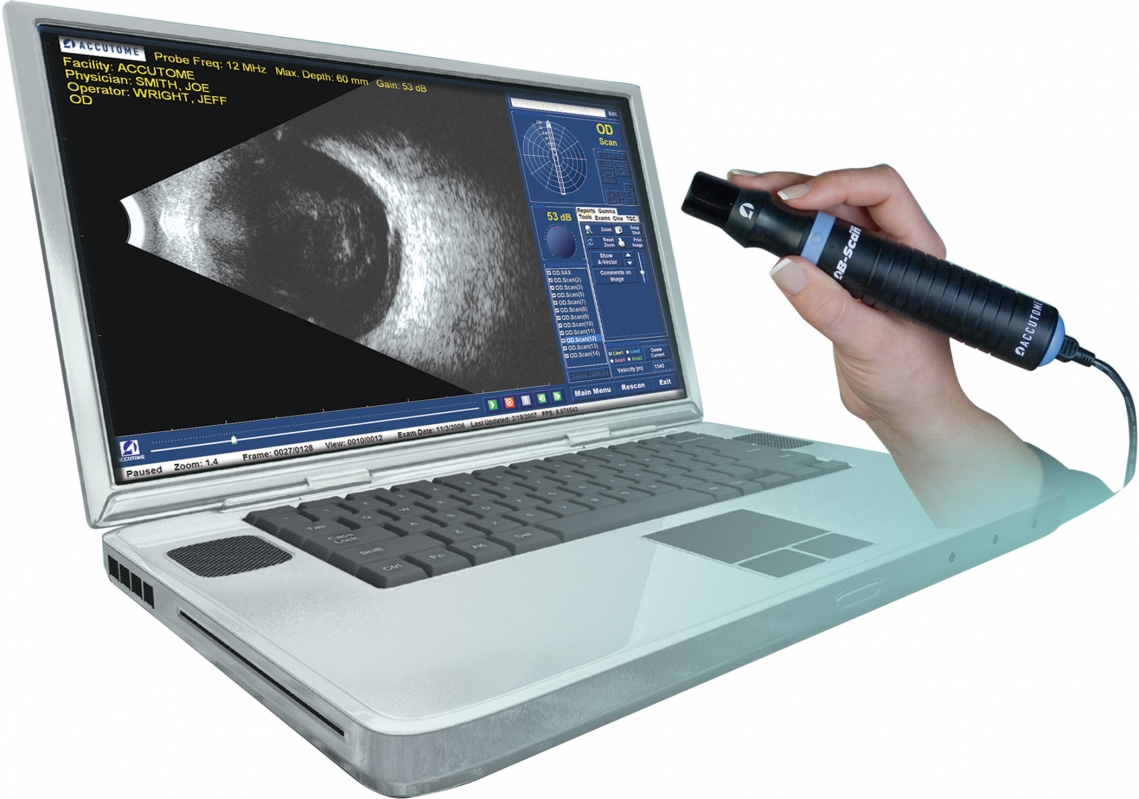

The B-Scan Plus’ proprietary software combined with unique probe electronics make it the only portable High Definition B-Scan. While developing the B-Scan Plus software, Accutome visited many of the top facilities around the world. The results are a reliable and easy-to-use unit, which can quickly scan patients and transport information.

  • Image is Everything – 0.015 mm resolution is the highest in the medical industry.
  •  State-of-the-Art Probe Design – Sharper, more focused images due to the elimination of signal loss.
  •  Unsurpassed Data Analysis – Contains 4 useful measuring tools along with corresponding A-Vectoring for diagnosing ocular pathologies.
  •  “Smooth Zoom” Technology – The only unit with 2x full image zoom without distortion of real-time or captured scan.
  •  Portable – Plug probe into any laptop or PC and go.*
  •  Never Miss an Image – Unlimited 34 second film loops.
  •  Share Information Easily – Adaptable document transfer via EMR, email or printer.
  •  Compact File Storage – Unsurpassed by the competition.
  •  Protect Your Investment – Easily upgradeable software.
  •  Master in Minutes – User-friendly interface makes user manuals and quick start guides unnecessary.

* Certain Computer Specifications Required.

Technical Specifications

Frequency(MHz) 12 or 15 MHz
Axial Resolution .015mm Electronic
Lateral Resolution .085mm Electronic
Gain (dB) 0-112 dB
Adjustable Gamma Linear, S-Curve, Log, Color
Scanning Angle (°) 60
Field of View (Depth in mm) 12 MHz = 64mm     15MHz = 52mm
Frame rate per second 15, 30 max
Sampling rate (points per line) 2048
Vectors per frame 256
Focal point (mm) 22mm
Focal Zone  (mm) 20mm
TGC Yes
Frozen image gain adjustment Yes
ZOOM (x) 2x optical zoom, 8x Maximum
Reports Integrated Microsoft Word™
Snapshot (still image) format Jpeg, bmp, png, tiff
Data Archive/Export capability Yes
Max. number of frames per scan 256
Size of cine loop (MB) 16 to 128 MB
Measurement Calipers w/ velocity adjustment 4 line, 2 area, 2 angle
Probe Specs
Size 7″ long x 1.25″ diameter
Weight 6oz.
Accessories Durable traveling case, probe holder,
footswitch, wireless mouse
